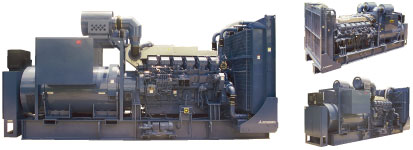

name: MITSUBISHI MGS-HV SERIES
DIESEL GENERATOR SET
The core of the MGS-HV Gen Set
is now -S typed diesel engines
for MGS-HV Power Rating
•Standard
Specification
VPI(Vacuum-Pressure
Impregnation) with Epoxy
resin.
IEC Class H Insulation for
3.3 kV and 4.16 kV generator
IEC Class F Insulation for
6.6 kV, 10 kV, 11 kV and
13.8 kV generator
Built-in AVR for 3.3 kV and
4.16 kV generator
Loose supply AVR for 6.6 kV,
10 kV, 11 kV and 13.8 kV
generator
Degree of Protection : IP-22
for Generator Enclosure
Degree of Protection : IP-44
for Terminal Box
PMG(Permanent Magnet
Generator(Exciter))
6 Numbers Pt 100 ohms RTD
for Stator
1 or 2 Numbers Pt 100 ohms
RTD for Bearing(s)
Three-Phase sensing type AVR
with V/Hz control
Commercial type Space Heater
Form-Wound Stator and
Salient pole Rotor
40 deg. C and 1000 mASL IEC
Standard conditions
Temperature Rise and Insulation
Class List
|
|
Voltage |
Insulation |
Base Temp
(°C) |
Rise Temp
(°C) |
Referred |
|
Stand-by |
3.3, 4.16 kV |
H |
40 |
150 |
Peak |
|
6.6, 10, 11,
13.8 kV |
F |
40 |
130 |
Peak |
|
Prime |
3.3, 4.16 kV |
H |
40 |
125 |
H |
|
6.6, 10, 11,
13.8 kV |
F |
40 |
105 |
F |
|
Continuous |
3.3, 4.16 kV |
H |
40 |
105 |
F |
|
6.6, 10, 11,
13.8 kV |
F |
40 |
80 |
B |
|
|
